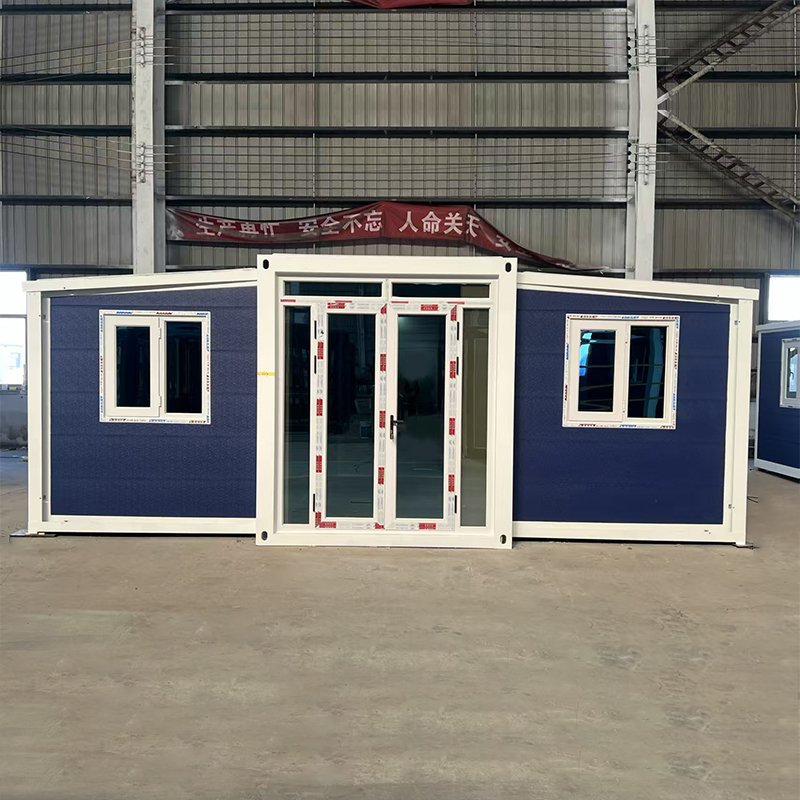

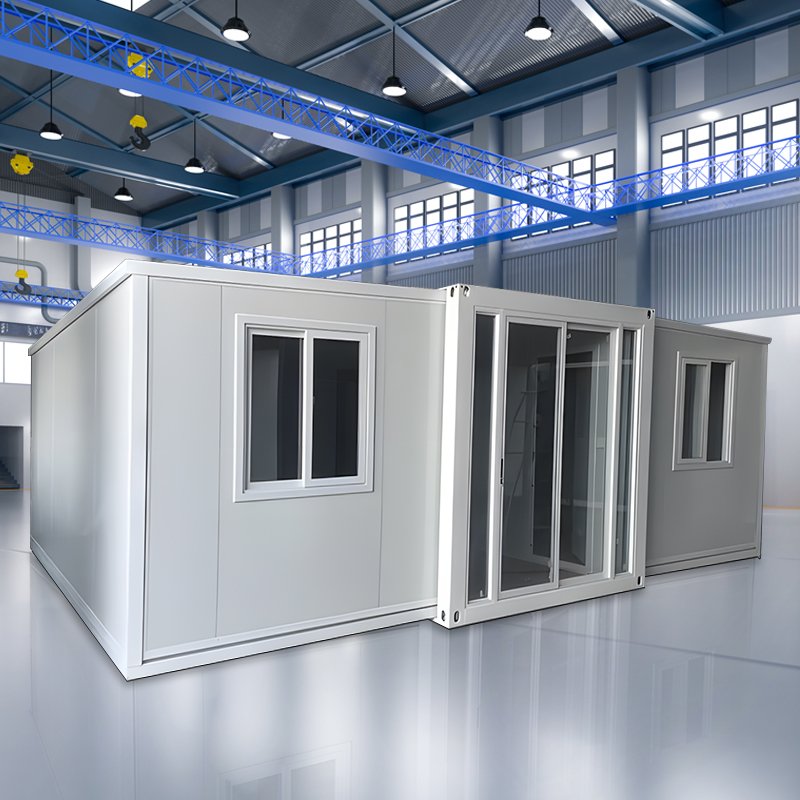

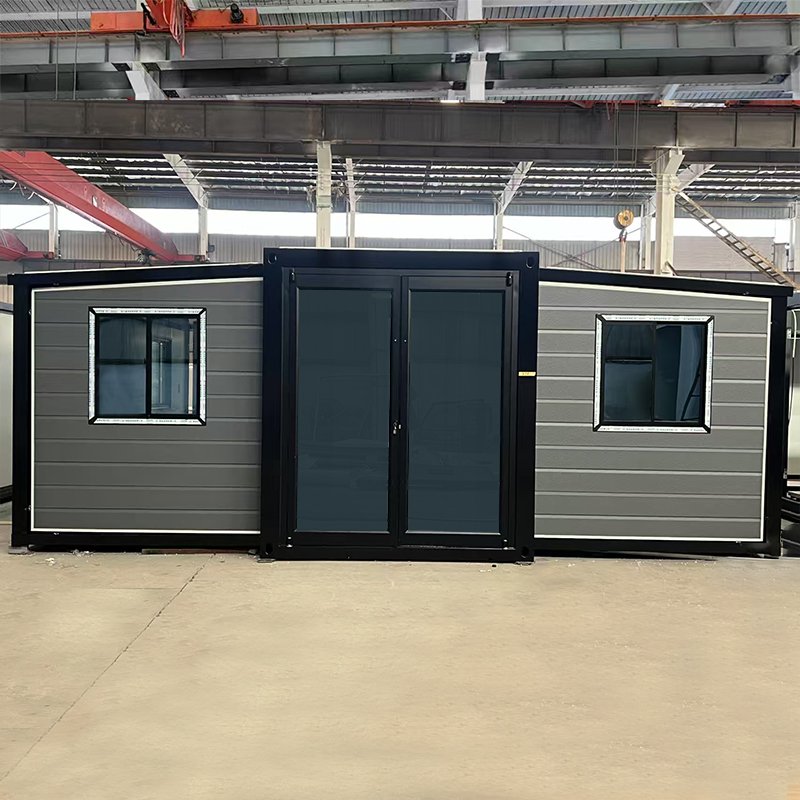

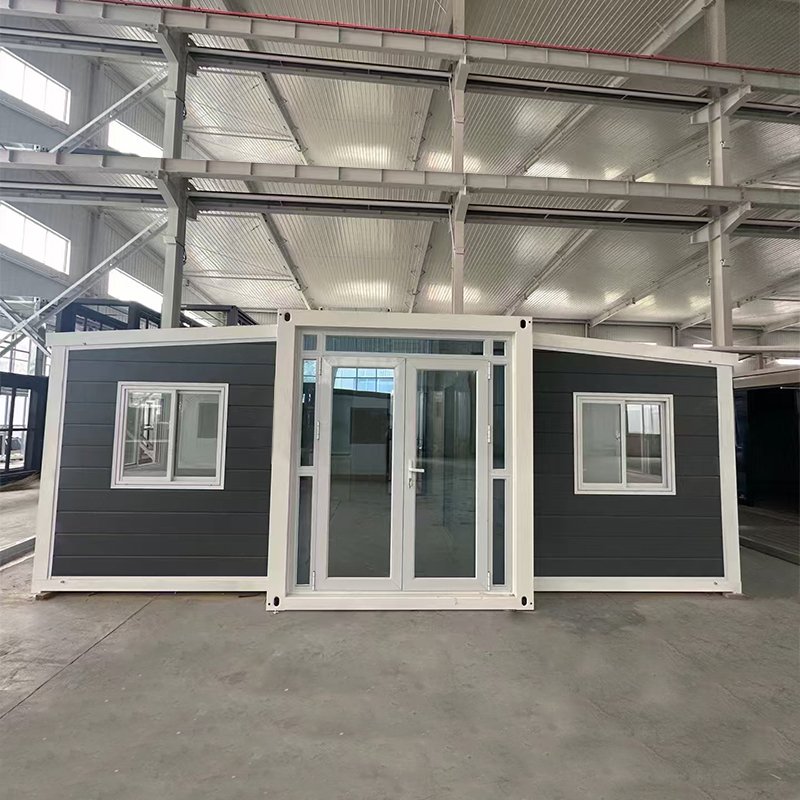

CASA-EC-01 Standard Expandable Container House
CASA BOX produces prefabricated container houses with galvanised steel frame structure, doors, windows, floors and ceilings made of high quality materials with a service life of up to 30 years. We offer a 2-year warranty.

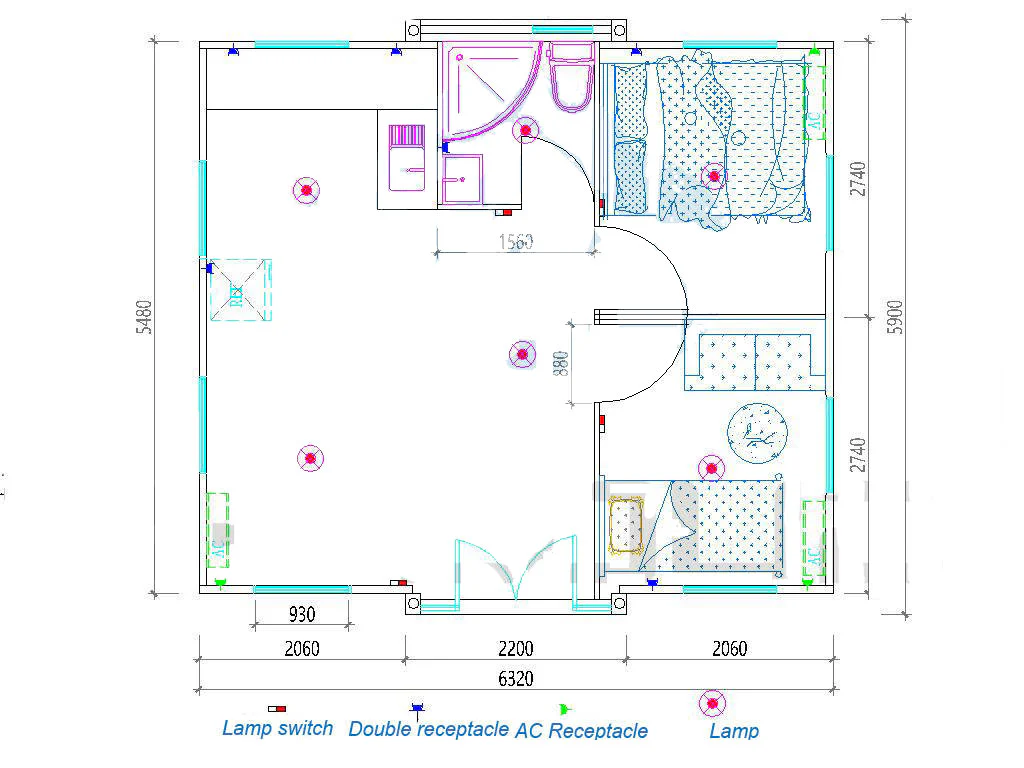

| Size(L*W*h) | Unfolded outer dimensions：6320*5900*2480mm |
| Unfolded inner dimensions：6160*5640*2240mm | |
| Folded dimensions：2200*5900*2480mm |
| Overview | 1.A single weight of an expanded container room is about 2.7 tonnes 2.Ground load of expanded container room is 1.5KN 3.Expanded area is about 37.288 square metres 4.40 feet shipping container can be loaded with 2 sets | |

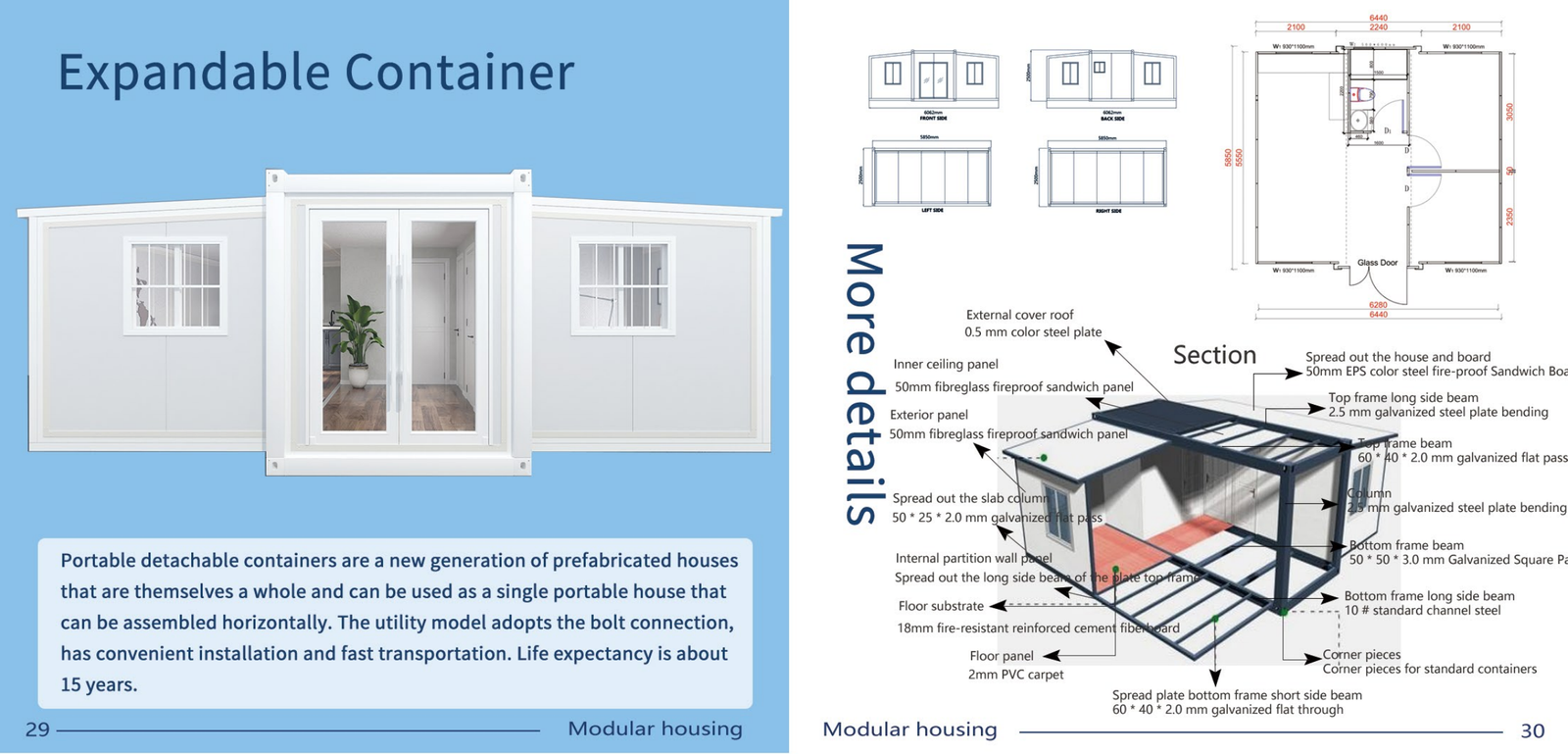

| Structure | Main profiles | Main beam 80*100*2.5mm, section height 140mm; secondary beam opening 40*40*1.2mm |
| Side top P-tube + 40*80 square tube | ||
| Main beam 80*100*2.5mm, secondary beam mouth 60*40*1.5mm | ||
| Main beam opening 80*60*2.0mm, secondary beam opening 60*40*1.5mm | ||
| Column：105*150*2.0mm | ||
| Structural connections | M10*100 high tensile bolts, 4 bolts for each corner piece | |
| Surface Finishing | Galvanised base material with powder coating. | |
| Wallboard | Polystyrene core | Colour steel composite board 75mm thick; double-sided pure flat, board core thermal insulation polystyrene board, capacity 12-14kg/m³, combustion performance for A-class non-combustible; surface coating steel plate thickness inside and outside 0.3mm. |
| Roof | Roof waterproofing | Colour white-grey, structural adhesive waterproof |
| Insulation layer | Glass wool felt insulation, 75mm thick, aluminium foil on one side, capacity 12kg/m³, combustion performance is class A non-combustible. | |
| Decorative layer | 20 strip ceiling panel, 0.3 mm, colour white-grey | |
| Floor | Structural board | Building formwork on both wings, cement fibreboard in the middle body box, all 18mm thick. |
| Floor treatment | 2.0mm thick eco-friendly PVC flooring | |
| Door | Entry door | Steel door, size 860*2100mm |
| Bedroom door | Steel set of doors (white grey) 2 sets, size W970mm×H1970mm, stainless steel fireproof locks | |
| integrated bathroom | customisation | |
| Window | External window | 60 series plastic steel sliding window, 4+9+4mm thick insulating glass with screen, size: W920×h920mm; 4 sets |
| Electronic | Light | LED round light x 5 sets. |
| Sockets, switches | 10A five-hole socket × 8, 16A air-conditioning socket × 3, single-button switch × 3, weak power × 1 | |
| Distribution boxes, connectors | Concealed distribution box 32A×2pcs; Industrial plug 220V,50Hz,3P32A×1pc | |
| Wiring | Entry line: 2*6 square + 1*1.5 square, air-conditioning socket: 2*4 square + 1*1.5 square, five-hole socket: 2*2.5 square + 1*1.5 square, lighting: 2*1.5 square, all with casing | |

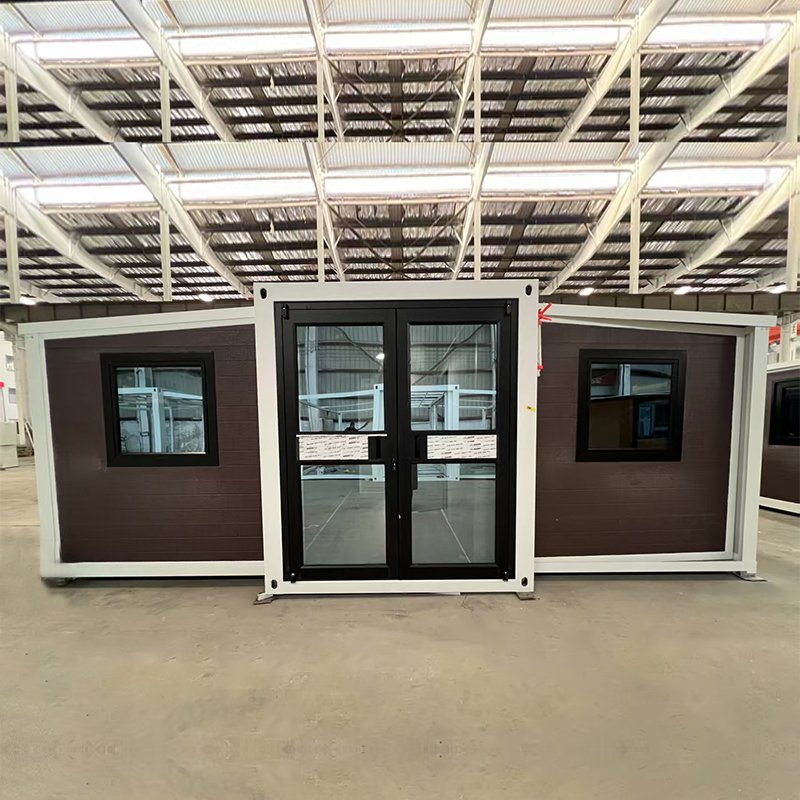

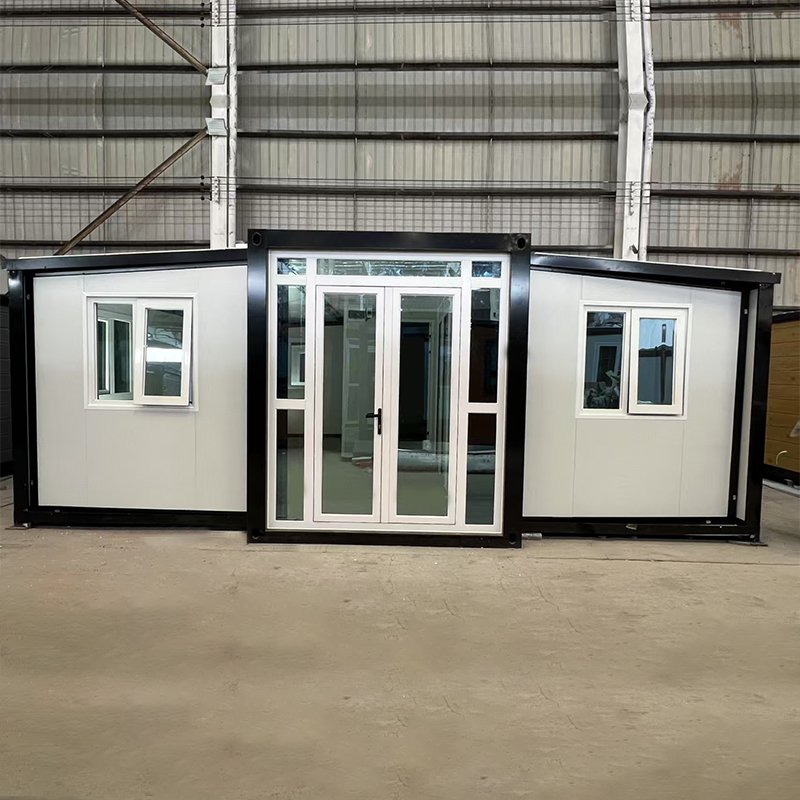

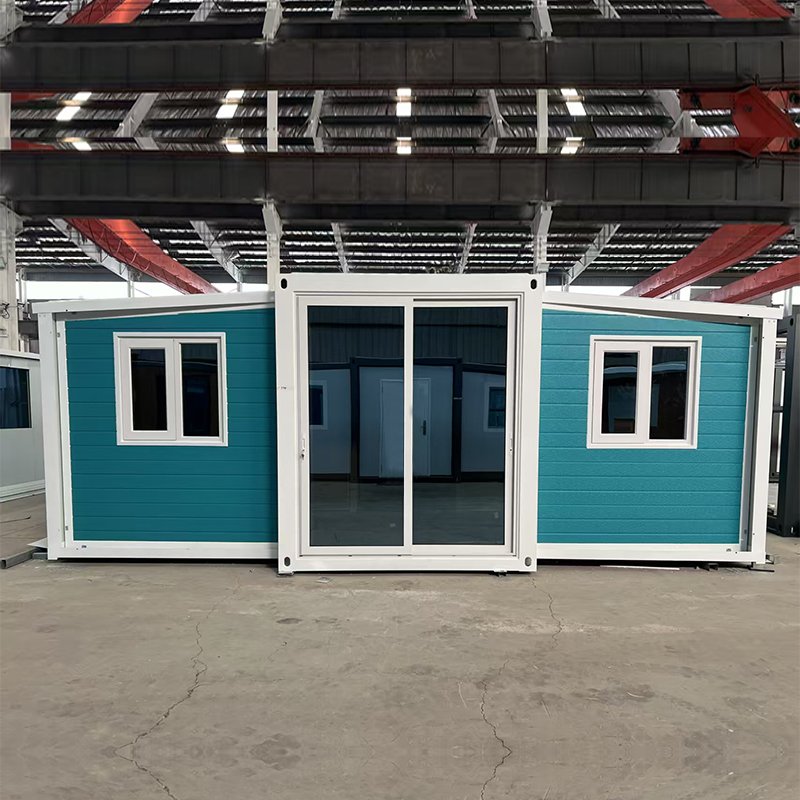

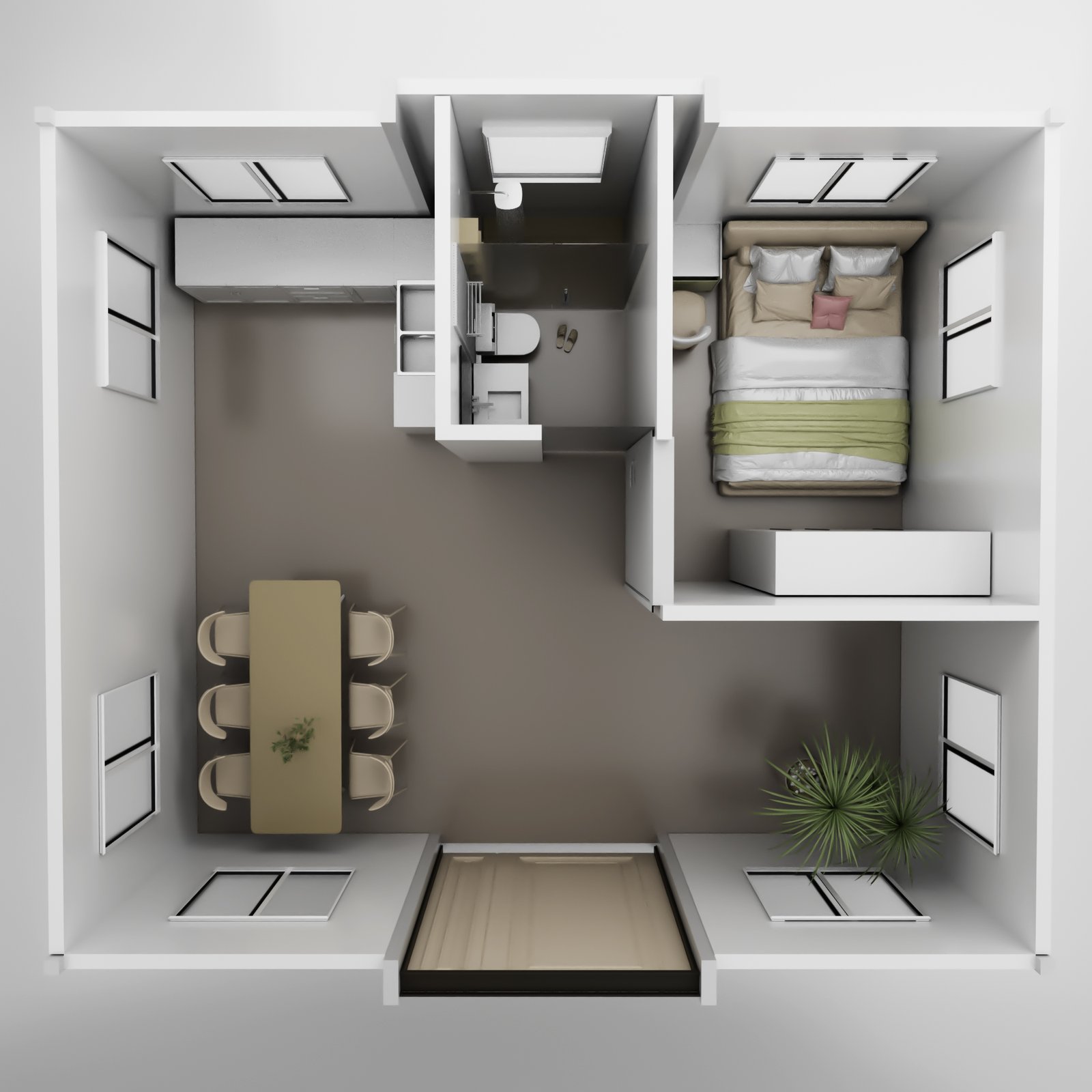

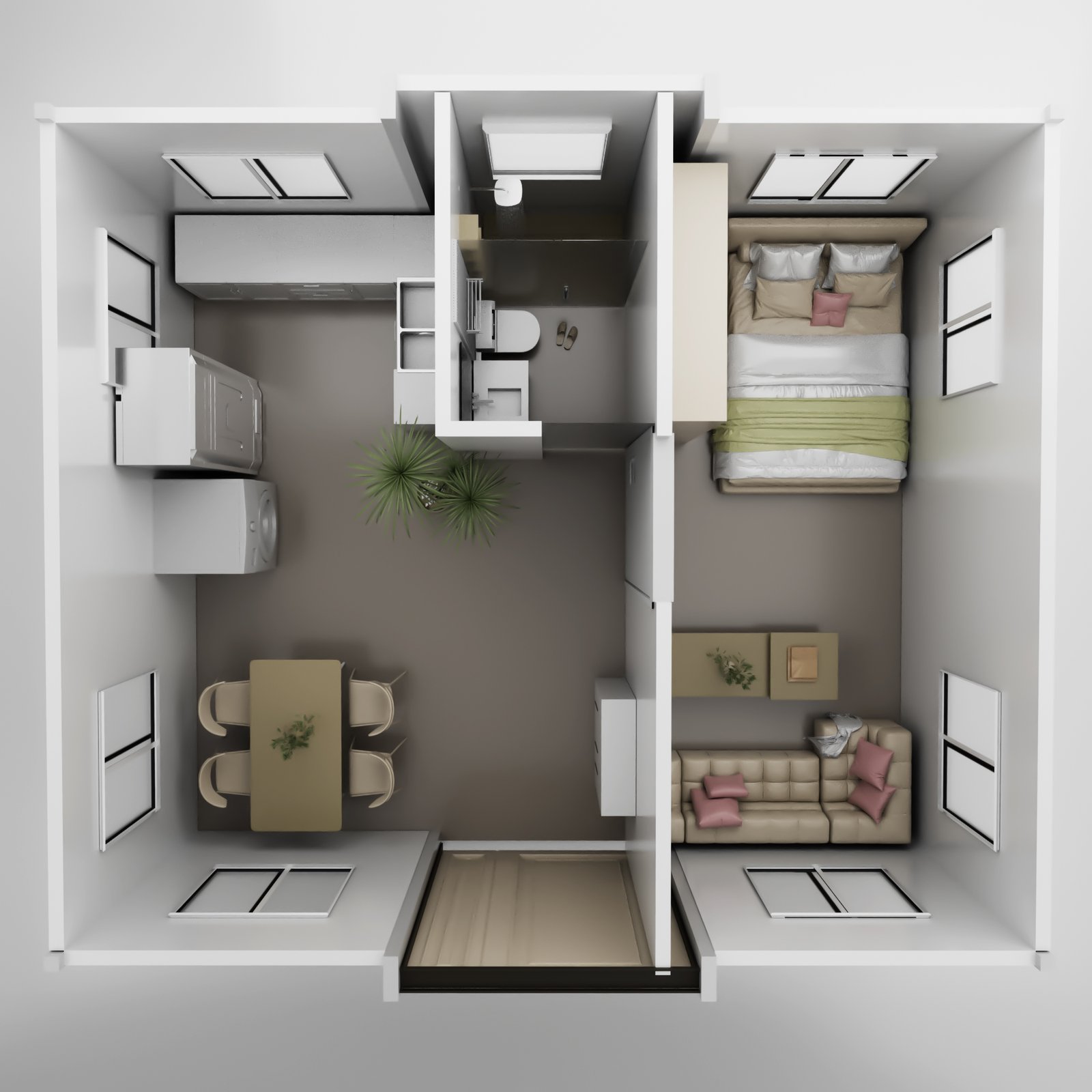

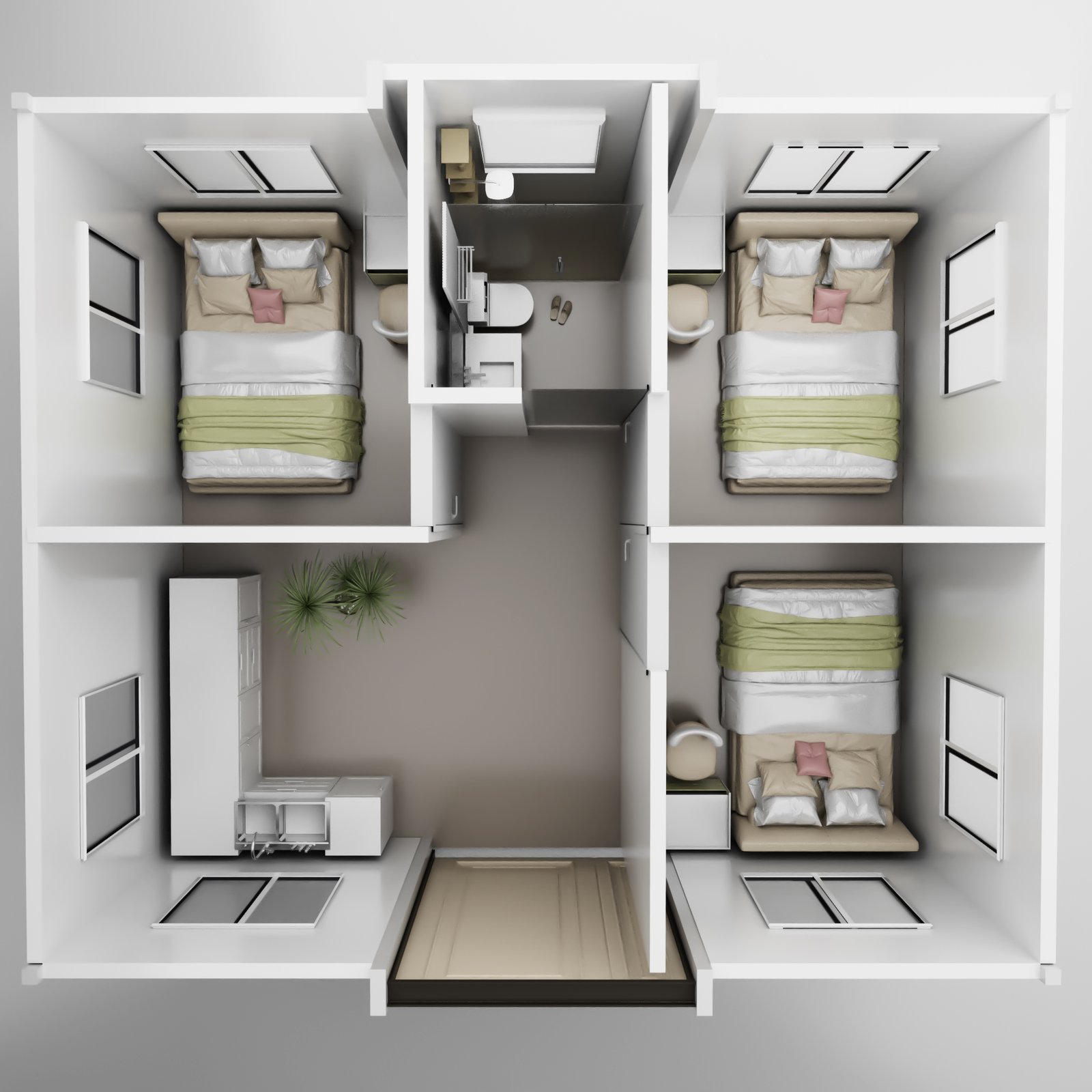

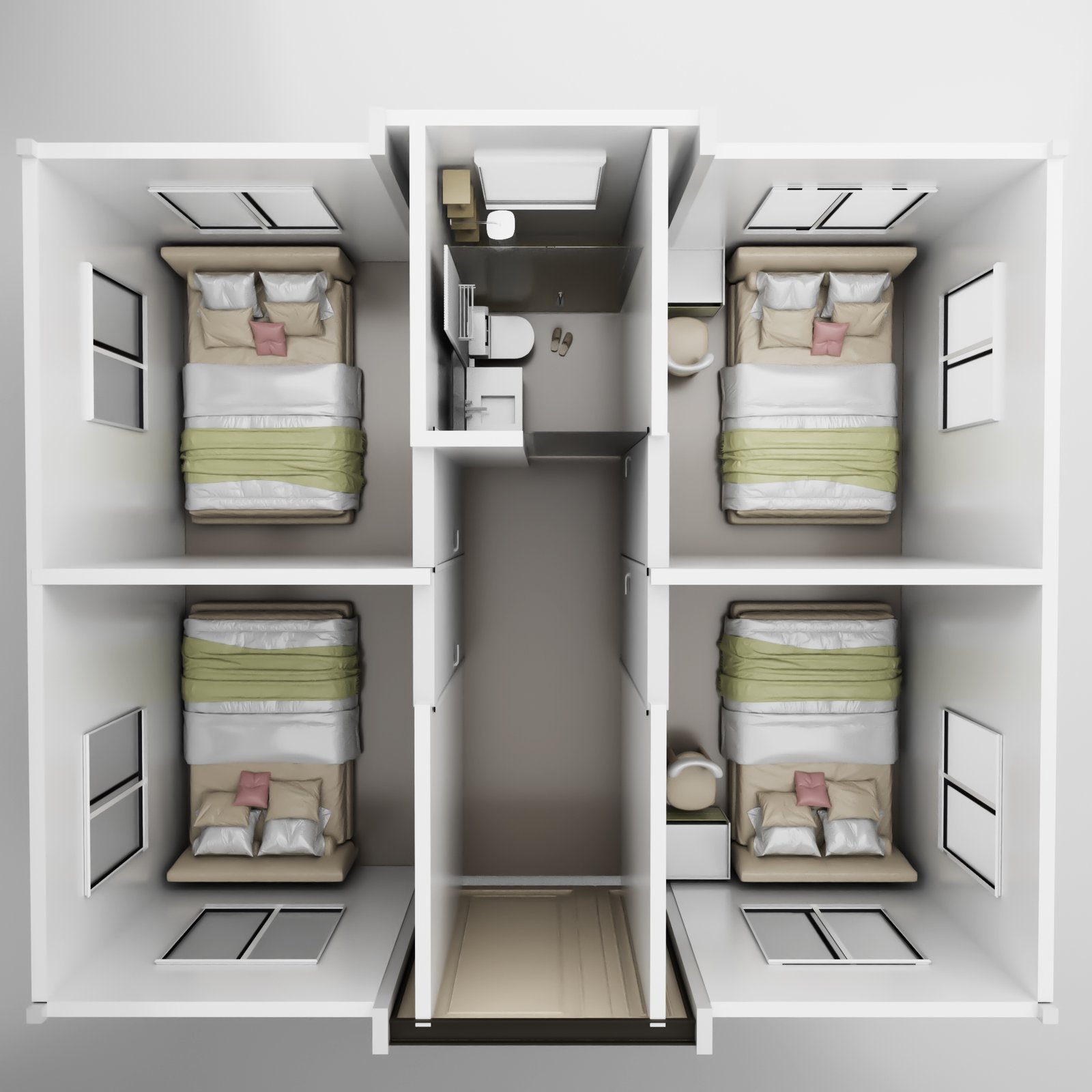

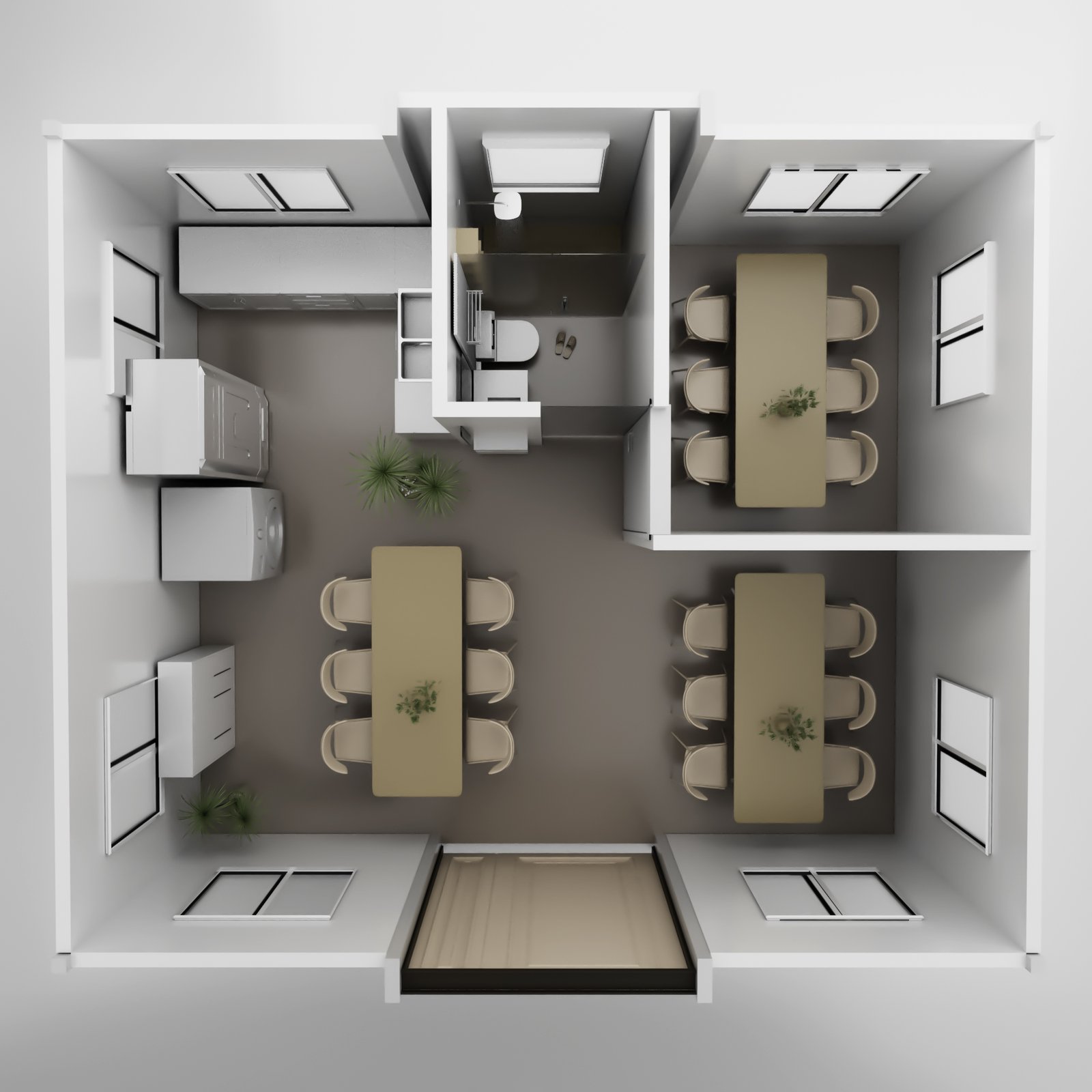

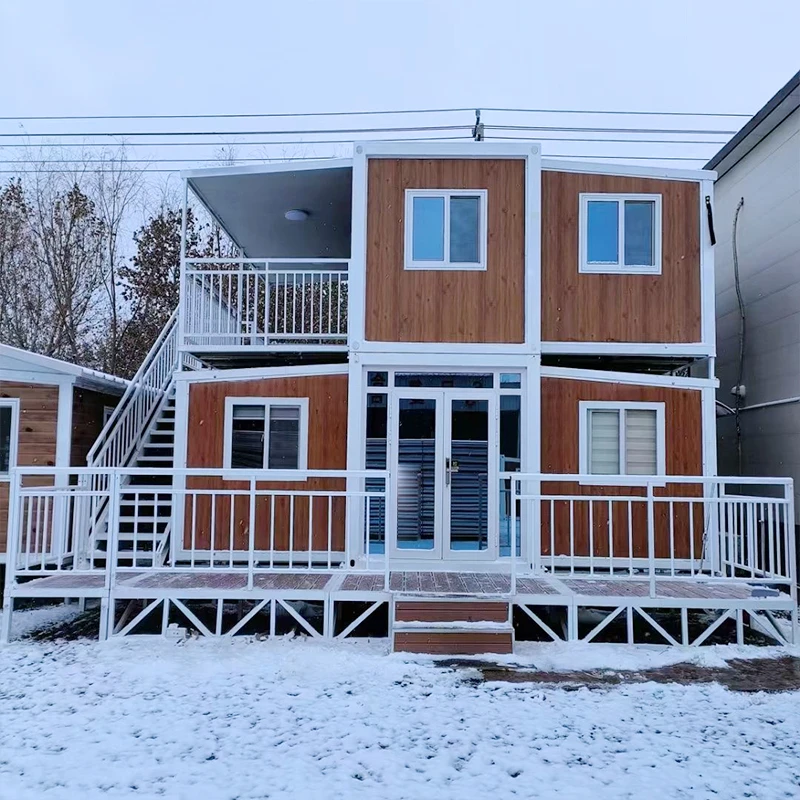

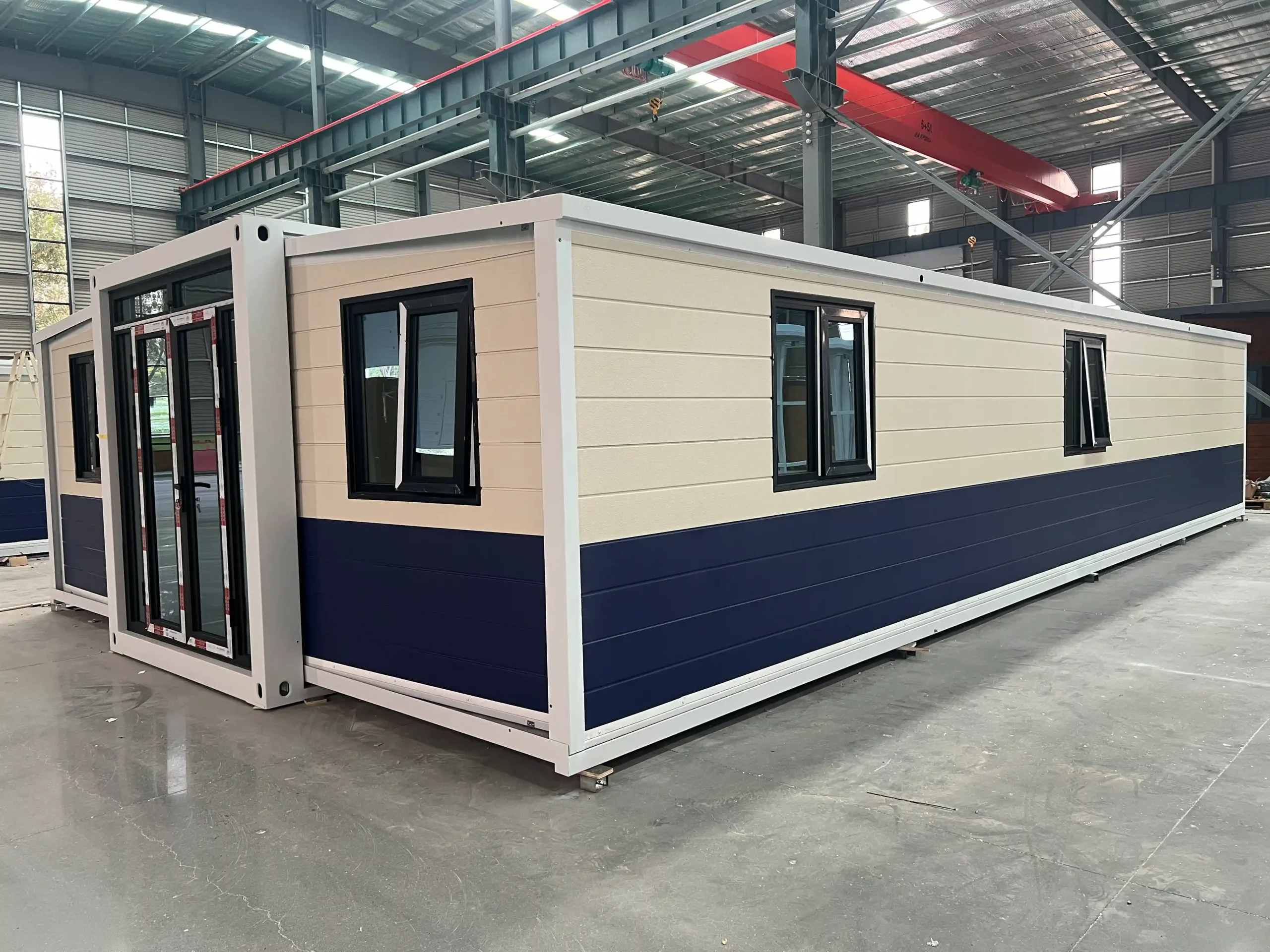

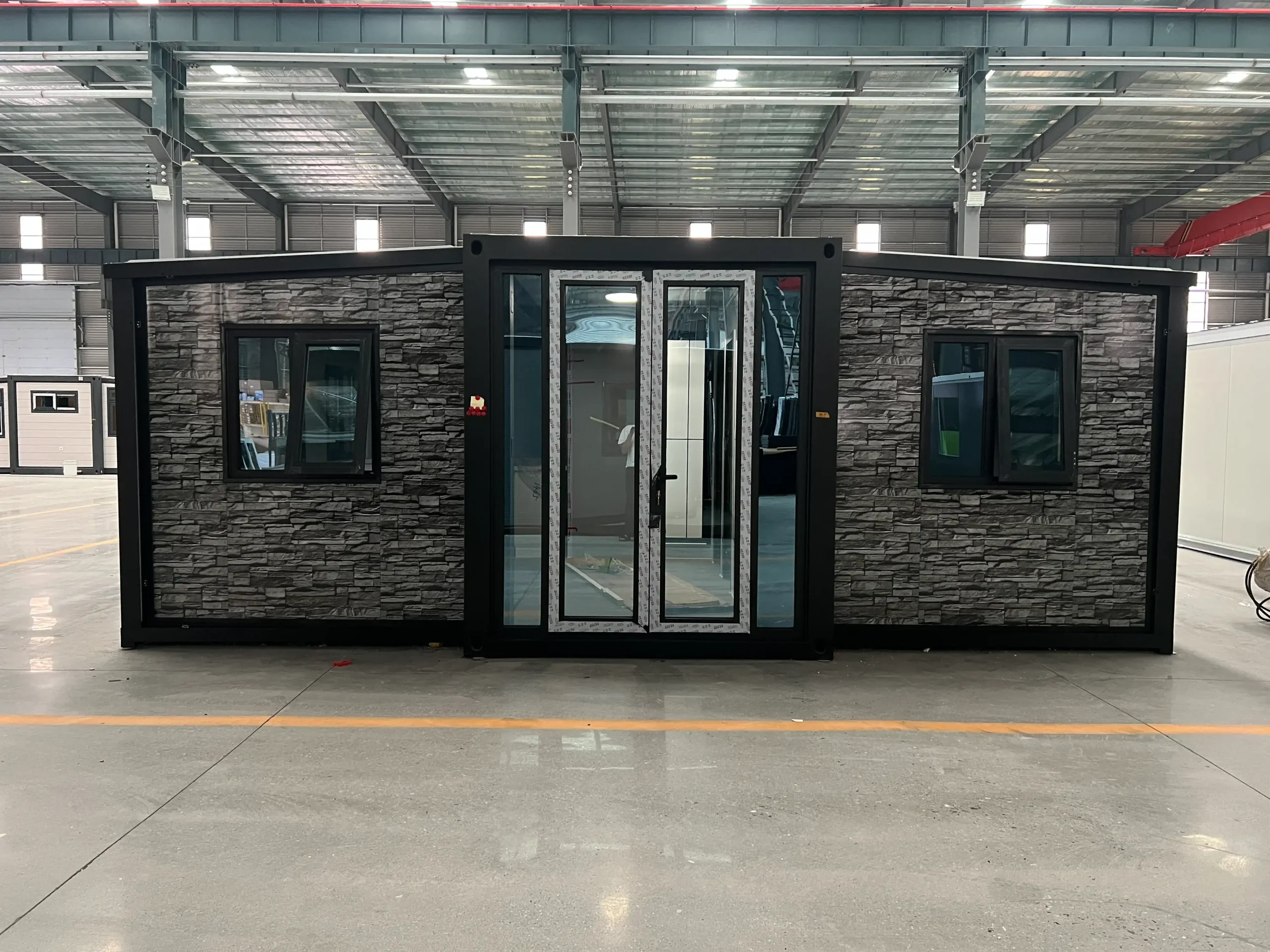

Expandable Container House Customised Cases
CASA BOX can make the container house in a variety of ways to meet your special needs.
